Electrical Vortex AC Cooler- 900 BTUH, No Air Filter

$1,412.00

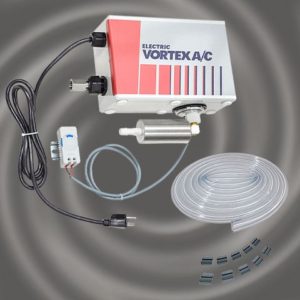

ELECTRICAL VORTEX AC Enclosure Cooler Only

Model 7015ES – 900 BTUH, Electrical Thermostat

Maintain User-Defined Temperatures with Electric Vortex A/C Coolers

Electric Vortex A/C Enclosure Coolers are the most advanced line of Vortec enclosure coolers and incorporate the most up-to-date features of the Vortex A/C and Vortex Cooler lines. These enclosure coolers are yet another innovative compressed air product in Vortec’s line of highly reliable, cost effective enclosure coolers.

  • Sleek, modern design
  • Noise reduction of 78%, when compared to standard vortex enclosure coolers
  • Energy reduction through its integral electric thermostat
  • Quick and easy installation in less than 10 minutes
  • Flexible installation: top, side or front (door) mount
  • UL Listed Type 4/4X
  • Can be supplied with 40 – 150 psi pressure, compressed air

The Electric Vortex A/C is available in 3 different cooling capacities from 900 to 2,500 BTU/hr*. All of Vortec’s Enclosure Coolers keep Electrical and Electronic Enclosures cool, clean and protected and are a low cost alternative to expensive, high maintenance air conditioners; and avoid contamination with dirty, humid air caused by fans. Today’s small, compact multi-function electronic controls, variable speed drives, servos and programmable logic controllers are extremely sensitive to heat and contamination. Smaller cabinet sizes make temperature control difficult and prone to premature failures. Excessive heat will cause digital displays to misread, controls to drift, and breakers to trip below rated loads. The result is productivity lost due to machine or line shutdowns.

Electric Vortex A/Cs maintain a slight pressurization in the cabinet to keep electrical and electronic components clean and dry; and are thermostatically controlled to maintain enclosure temperatures at a user specified temperature setting.

* All cooling capacities are measured at 100 psi.

Options: Cooler only, NO Compressed Air Filter (See V77135E for whole system)

Options:

7015ES -900 BTUH, Electrical Thermostat, Side mount power cord, 120V        ORDER NOW

7015EB-900 BTUH, Electrical Thermostat, Bottom mount power cord, 120V        ORDER NOW

7015ESF- 900 BTUH, Electrical Thermostat, Side mount power cord, 240V        ORDER NOW

7015EBF- 900 BTUH, Electrical Thermostat, Bottom mount power cord, 240V        ORDER NOW

**Also available in BSP.

DATA SHEET *Models 70xxEB and 77xxEB (NEMA 4 and 4X)

DATA SHEET *Models 70xxES and 77xxES (NEMA 4 and 4X)

PRODUCT NUMBER Cooling Capacity (BTU/hr) Air Consumption @ 100 psig (scfm) Rating Thermostat System or Cooler Only? Sound Level ES Side or EB Bottom Cord*
7015EB 900 15 NEMA 4/4X 120 VAC Cooler Only 62 – 68 dBA EB
7015EBF 900 15 NEMA 4/4X 240 VAC Cooler Only 62 – 68 dBA EB
7015ES 900 15 NEMA 4/4X 120 VAC Cooler Only 62 – 68 dBA ES
7015ESF 900 15 NEMA 4/4X 240 VAC Cooler Only 62 – 68 dBA ES
7025EB 1500 25 NEMA 4/4X 120 VAC Cooler Only 62 – 68 dBA EB
7025EBF 1500 25 NEMA 4/4X 240 VAC Cooler Only 62 – 68 dBA EB
7025ES 1500 25 NEMA 4/4X 120 VAC Cooler Only 62 – 68 dBA ES
7025ESF 1500 25 NEMA 4/4X 240 VAC Cooler Only 62 – 68 dBA ES
7035EB 2500 35 NEMA 4/4X 120 VAC Cooler Only 62 – 68 dBA EB
7035EBF 2500 35 NEMA 4/4X 240 VAC Cooler Only 62 – 68 dBA EB
7035ES 2500 35 NEMA 4/4X 120 VAC Cooler Only 62 – 68 dBA ES
7035ESF 2500 35 NEMA 4/4X 240 VAC Cooler Only 62 – 68 dBA ES
7715EB 900 15 NEMA 4/4X 120 VAC System 62 – 68 dBA EB
7715EBF 900 15 NEMA 4/4X 240 VAC System 62 – 68 dBA EB
7715ES 900 15 NEMA 4/4X 120 VAC System 62 – 68 dBA ES
7715ESF 900 15 NEMA 4/4X 240 VAC System 62 – 68 dBA ES
7725EB 1500 25 NEMA 4/4X 120 VAC System 62 – 68 dBA EB
7725EBF 1500 25 NEMA 4/4X 240 VAC System 62 – 68 dBA EB
7725ES 1500 25 NEMA 4/4X 120 VAC System 62 – 68 dBA ES
7725ESF 1500 25 NEMA 4/4X 240 VAC System 62 – 68 dBA ES
7735EB 2500 35 NEMA 4/4X 120 VAC System 62 – 68 dBA EB
7735EBF 2500 35 NEMA 4/4X 240 VAC System 62 – 68 dBA EB
7735ES 2500 35 NEMA 4/4X 120 VAC System 62 – 68 dBA ES
7735ESF 2500 35 NEMA 4/4X 240 VAC System 62 – 68 dBA ES
