Electrical Vortex AC

C.C. Steven, your ANSWER to compressed air challenges.


ELECTRICAL VORTEX A/C ENCLOSURE COOLERS

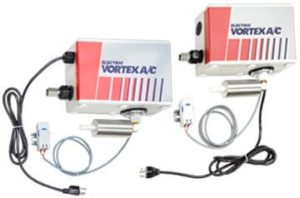

Electric Vortex A/C Enclosure Coolers are the most advanced line of Vortec enclosure coolers and incorporate the most up-to-date features of the Vortex A/C and Vortex Cooler lines. These enclosure coolers are yet another innovative compressed air product in Vortec’s line of highly reliable, cost effective enclosure coolers.

  • Sleek, modern design
  • Noise reduction of 78%, when compared to standard vortex enclosure coolers
  • Energy reduction through its integral electric thermostat
  • Quick and easy installation in less than 10 minutes
  • Flexible installation: top, side or front (door) mount
  • UL Listed Type 4/4X
  • Can be supplied with 40 – 150 psi pressure, compressed air

The Electric Vortex A/C is available in 3 different cooling capacities from 900 to 2,500 BTU/hr*. All of Vortec’s Enclosure Coolers keep Electrical and Electronic Enclosures cool, clean and protected and are a low cost alternative to expensive, high maintenance air conditioners; and avoid contamination with dirty, humid air caused by fans. Today’s small, compact multi-function electronic controls, variable speed drives, servos and programmable logic controllers are extremely sensitive to heat and contamination. Smaller cabinet sizes make temperature control difficult and prone to premature failures. Excessive heat will cause digital displays to misread, controls to drift, and breakers to trip below rated loads. The result is productivity lost due to machine or line shutdowns.

Electric Vortex A/Cs maintain a slight pressurization in the cabinet to keep electrical and electronic components clean and dry; and are thermostatically controlled to maintain enclosure temperatures at a user specified temperature setting.

To determine what model you need please click on Heat Load calculator below or call us at 805-658-0207 or email [email protected]

* All cooling capacities are measured at 100 psi.  **Available with and without air filter. See models below and click to add to cart!

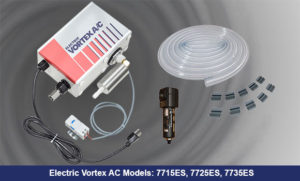

Electric-Vortex-AC-77x5ES

SPECIFICATIONS

Description
Rating
ES Side or EB Bottom Cord
Quiet
System or Cooler Only?
Cooling Capacity, BTU/hr
Air Consumption
SCFM
Item #
Specs
ES Electric Vortex A/C
NEMA 4/4X
ES requires plug outside enclosure
62-68 dbA
System
900
15
1500
25
2500
35
ES Electric Vortex A/C
NEMA 4/4X
ES requires plug outside enclosure
62-68 dbA
Cooler Only
900
15
1500
25
2500
35
EB Electric Vortex A/C
NEMA 4/4X
EB requires plug inside enclosure
62-68 dbA
System
900
15
1500
25
2500
35
EB Electric Vortex A/C
NEMA 4/4X
EB requires plug inside enclosure
62-68 dbA
Cooler Only
900
15
1500
25
2500
35
