Sale!

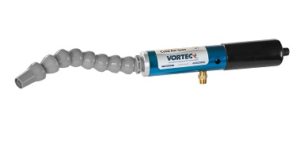

Adjustable Cold Air Gun only

$355.00 $327.00

Clear

Product Description

Standard Cold Air Guns

Adjustable Cold Air Gun only

( Magnetic Base Not Included Gun Only )

BENEFITS

  • Increase dry machining speeds up to 36%
  • Extend tool life by 50%
  • Eliminates the mess, expense and safety concerns of using mist coolants
  • Reduce waiting or normalization time by cooling parts faster
  • Eliminate the potential for burning and scorching
  • Avoid secondary parts cleaning after machining
  • Reduce grinding wheel loading caused by overheating
  • Airflow clears sawdust, shavings and dirt away from surface

FEATURES

  • Creates cold air up to 100 F deg (+ 56 C deg) below the inlet compressed air temperature
  • Quiet operation; meets OSHA noise specifications
  • Adjustable temperature and flow rate
  • Highly reliable with no moving parts
  • Low pressure outlet air
  • Uses only compressed air – no Freon
  • System includes a magnetic base and a 5 micron auto-drain compressed air filter
  • Magnetic base allows for easy, close in positioning and easy portability
  • Ergonomic trigger mechanism on the Cold Air Pistol
  • Frost free nozzle eliminates mess from frost and condensation

Model #: 610-1 Adjustable Cold Air Gun only, 15  SCFM/ 1/4″NPT

Sale Price : $327.00 ORDER NOW

Model #: 620-1 Adjustable Cold Air Gun only, 25  SCFM/ 1/4″NPT

Sale Price: $327.00  ORDER NOW

Model #: 630-1 Adjustable Cold Air Gun only, 35  SCFM/ 1/4″NPT

Sale Price: $327.00  ORDER NOW

Recommended products: 610-26, 610-30, 611-FNU (all below), 701S-24A,701S-36A, and 701S-48

SPECIFICATIONS

Cold Air Gun 610 620 630
Compressed air pressure (psig) 80 – 100 80 – 100 80 – 100
Inlet size (NPT pipe thread, inches) 1/4 1/4 1/4
Minimum Outlet Temperature, deg F
(at 70 deg F inlet air)
-10 10 30
Cooling Capacity (BTU/hr) 900 1500 2500
Air Consumption @ 100 psig (scfm) 15 25 35
Outlet Air Flow Rate (scfm) 2 to 15 8 to 25 18 to 35
Dimensions, inches
      Overall Length 18 5/8 18 5/8 18 5/8
      Diameter 1 3/4 1 3/4 1 3/4
      Nozzle Length 8 8 8
      Flexible Nozzle Diameter 1 1 1
      Outlet Diameter (ID) 3/8 3/8 3/8
      Magnetic base diameter 3  3/16 3  3/16 3  3/16
      Magnetic base height 4 1/8 4 1/8 4 1/8
Weight, lbs 3.0 3.0 3.2
Supply hose
      Diameter, inch  3/8  3/8  1/2
      Max. recommended pipe/hose length 25 15 30
Recommended filter size 25 scfm 25 scfm 35 scfm
Recommended filter model 701S-24A 701S-24A 701S-36A
