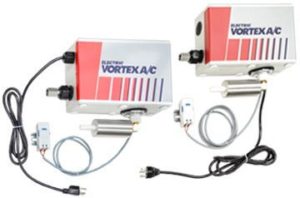

Electrical Vortex AC Enclosure Cooler -2500 BTUH/7735E


Electric-Vortex-AC-77x5ESELECTRICAL VORTEX AC Enclosure Cooler System   Model 7735E

2500 BTUH, Electrical Thermostat

Electric Vortex A/C Enclosure Coolers are the most advanced line of Vortec enclosure coolers and incorporate the most up-to-date features of the Vortex A/C and Vortex Cooler lines. These enclosure coolers are yet another innovative compressed air product in Vortec’s line of highly reliable, cost effective enclosure coolers.


  • Sleek, modern design
  • Noise reduction of 78%, when compared to standard vortex enclosure coolers
  • Energy reduction through its integral electric thermostat
  • Quick and easy installation in less than 10 minutes
  • Flexible installation: top, side or front (door) mount
  • UL Listed Type 4/4X
  • Can be supplied with 40 – 150 psi pressure, compressed air

The Electric Vortex A/C is available in 3 different cooling capacities from 900 to 2,500 BTU/hr*. All of Vortec’s Enclosure Coolers keep Electrical and Electronic Enclosures cool, clean and protected and are a low cost alternative to expensive, high maintenance air conditioners; and avoid contamination with dirty, humid air caused by fans. Today’s small, compact multi-function electronic controls, variable speed drives, servos and programmable logic controllers are extremely sensitive to heat and contamination. Smaller cabinet sizes make temperature control difficult and prone to premature failures. Excessive heat will cause digital displays to misread, controls to drift, and breakers to trip below rated loads. The result is productivity lost due to machine or line shutdowns.

Electric Vortex A/Cs maintain a slight pressurization in the cabinet to keep electrical and electronic components clean and dry; and are thermostatically controlled to maintain enclosure temperatures at a user specified temperature setting.

* All cooling capacities are measured at 100 psi.


7735ES – 2500 BTUH, Electrical Thermostat, Side mount power cord, 120V        ORDER NOW

7735EB- 2500 BTUH, Electrical Thermostat, Bottom mount power cord, 120V        ORDER NOW

7735ESF- 2500 BTUH, Electrical Thermostat, Side mount power cord, 240V        ORDER NOW

7735EBF- 2500 BTUH, Electrical Thermostat, Bottom mount power cord, 240V        ORDER NOW

**Also available in BSP.

DATA SHEET *Models 70xxEB and 77xxEB (NEMA 4 and 4X)

DATA SHEET *Models 70xxES and 77xxES (NEMA 4 and 4X)
